Rpc-Agent介绍

发表于 | 分类于 | 评论数： | 阅读次数：

Rpc Agent is a framework, with which you can develop an agent server for a RPC framework.

Quick Start

Rpc Agent provide a simple demo for a quick start.

How to Build

  1. Make sure maven has been installed on your machine

  2. Run mvn clean package to build this project

    at the last, if success, you will see message like this

1
2
3
4
5
6
7
8
9
10
11
[INFO] Reactor Summary for rpc-agent-parent 1.0-SNAPSHOT:
[INFO]
[INFO] rpc-agent-parent ................................... SUCCESS [  0.190 s]
[INFO] rpc-agent-core ..................................... SUCCESS [  2.016 s]
[INFO] rpc-agent-server ................................... SUCCESS [  2.363 s]
[INFO] rpc-agent-console .................................. SUCCESS [  0.421 s]
[INFO] rpc-agent-demo ..................................... SUCCESS [  0.002 s]
[INFO] rpc-agent-simple ................................... SUCCESS [  0.686 s]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------

rpc-agent-simple is a demo, and the target jar file is rpc-agent-simple-1.0-SNAPSHOT-jar-with-dependencies.jar, you can rename it to rpc-agent-simple.jar.

How to use

Run java -jar rpc-agent-simple.jar -h to see what you can do with this tool

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Usage: java -jar rpc-agent-simple.jar [options]
  Options:
    -h, --help
      print help message
      Default: false
    -d, --demo
      export config demo
      Default: false
    -f, --file
      [client mode] specified config file
      Default: request.json
    -s, --server
      [server mode] enable server mode
      Default: false
    -l, --local
      [server mode] use loopback address
      Default: false
    -p, --port
      [server mode] specified server port
      Default: 8080
    -v, --version
      print version info
      Default: false

Run java -jar rpc-agent-simple.jar -d to export demo config file

1
write config file: demo.json

Open demo.json to see the config format

1
2
3
4
5
6
7
8
{
	"host":"127.0.0.1",
	"method":"simple",
	"params":[],
	"port":1234,
	"service":"com.gorden5566.demo.service.SimpleService",
	"tag":""
}

Run in Client Mode

Run command java -jar rpc-agent-simple.jar -f demo.json to start a remote call

1
2
3
4
5
6
7
8
java -jar rpc-agent-simple.jar -f demo.json
reqid: 010256f87c064f06be6070e293053865
{
        "data":{
                "host":"127.0.0.1",
                "port":1234
        }
}

Run in Server Mode

Run command java -jar rpc-agent-simple.jar -s to start agent server, and you can use -l option to use loopback address, use -p option to set server port.

If server started success, it will log to console like this

1
server started, agent path: [localhost:8080/agent]

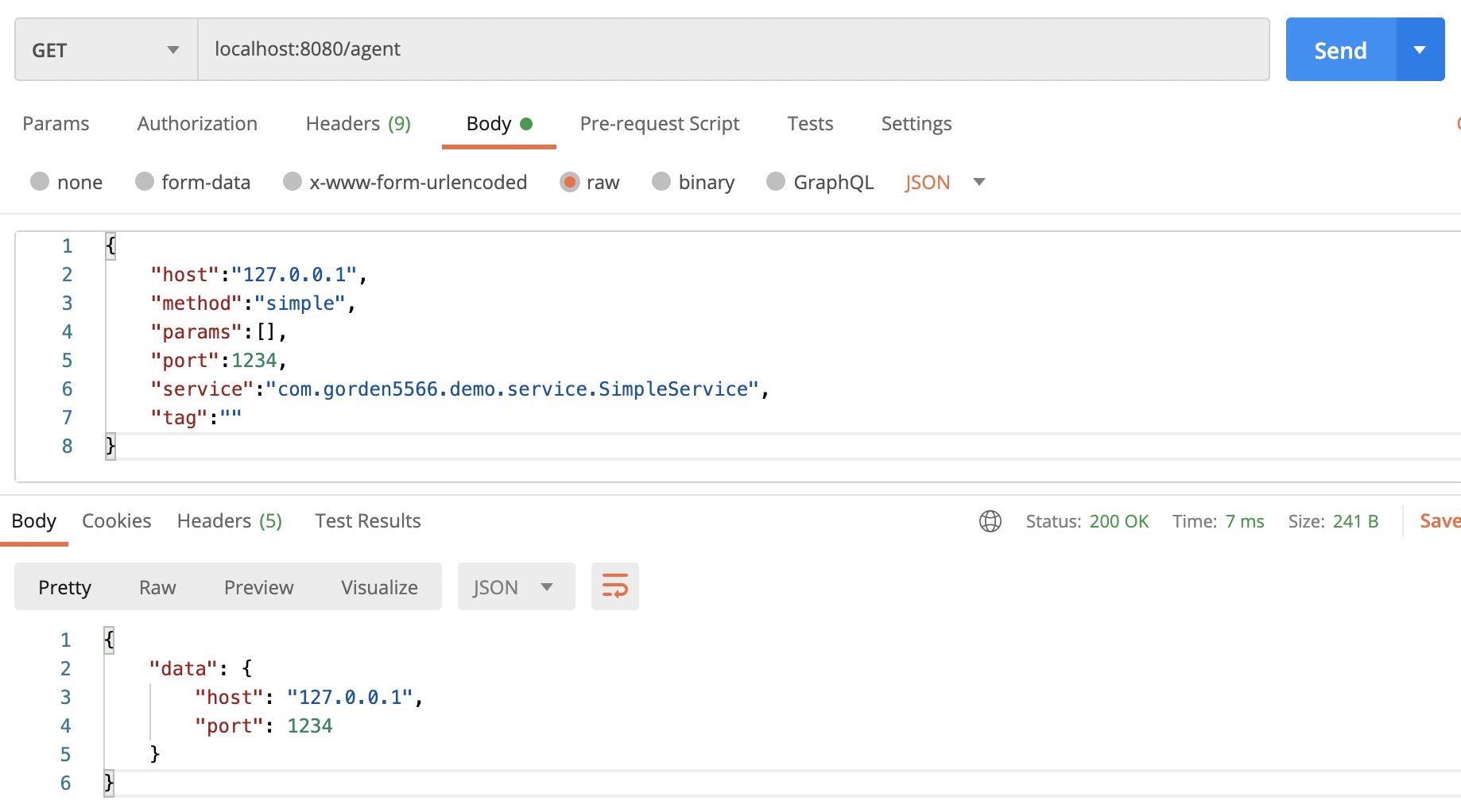

then you can start a remote call with Postman or other tools

image-20201203015511059

How to develop

See rpc-agent-simple module

1
2
3
4
5
6
7
8
9
10
11
12
13
14
├── java
│   └── com
│       └── gorden5566
│           └── rpc
│               └── agent
│                   └── simple
│                       ├── SimpleInvoker.java
│                       ├── SimpleInvokerBuilder.java
│                       └── SimpleRpcConfigParser.java
└── resources
    └── META-INF
        └── services
            ├── com.gorden5566.rpc.agent.core.spi.InvokerBuilder
            └── com.gorden5566.rpc.agent.core.spi.RpcConfigParser

  1. RpcConfigParser: parse request config to RpcRequest and InvokerConfig

  2. RpcRequest: the parameter for a remote call

  3. InvokerConfig: the remote server

  4. InvokerBuilder: to bulid a concrete Invoker, for example, a Invoker for dubbo

As you see, what you need to do is provide a RpcConfigParser and a Invoker with InvokerBuilder, then you can register all this with SPI file com.gorden5566.rpc.agent.core.spi.InvokerBuilder and com.gorden5566.rpc.agent.core.spi.RpcConfigParser.

At last, you can custom title or vendor in pom.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
<build>
    <plugins>
        <plugin>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-assembly-plugin</artifactId>
            <version>3.2.0</version>
            <executions>
                <execution>
                    <phase>package</phase>
                    <goals>
                        <goal>single</goal>
                    </goals>
                </execution>
            </executions>
            <configuration>
                <descriptorRefs>
                    <descriptorRef>jar-with-dependencies</descriptorRef>
                </descriptorRefs>
                <archive>
                    <manifestEntries>
                        <main-Class>com.gorden5566.rpc.agent.server.BootStrap</main-Class>
                        <Implementation-Version>${project.version}</Implementation-Version>
                        <Implementation-Title>rpc-agent-simple</Implementation-Title>
                        <Implementation-Vendor>gorden5566</Implementation-Vendor>
                    </manifestEntries>
                </archive>
            </configuration>
        </plugin>
    </plugins>
</build>

Reference

https://github.com/gorden5566/rpc-agent
